FEATURES
- Full-range 2.25-inch transducer, low-frequency range down to 83 Hz, 16 Ω, and 70/100V operation
- Handles the weather, designed for outdoor wet installation
- Maintain consistent tonal quality with shared voicing across all FS models
- Hear the best of both — music and voice — with transducers that offer clear voice reproduction and smooth response for background music
- Blend with more room designs with updated enclosures — available in black and white — that pair modern aesthetics with practical features, including removable logos
- Tackle site-specific challenges with the support of a full suite of accessories, designed to handle a wide range of applications and mounting options
- Install with ease — all models feature Euroblock inputs and front-baffle input location on in-ceiling models
- Support public safety — all models are UL 1480 ULC-S541-listed for use in fire alarm and signaling systems in life safety applications
SPECS
TECHNICAL SPECIFICATION
PHYSICAL
- Colors
- Black (similar to RAL 9005), white (similar to RAL 9003)
- Enclosure Material
- Engineered plastics, highly UV fade-resistant
- Grille Material
- Perforated steel, powder-coated finish, tamper-resistant design
- Ingress Protection
- IP55
- Logo
- Removable
- Net Weight
- 3.2 lb (1.4 kg), loudspeaker with grille & bracket (single)
- Operating Temperature
- -25 °C to 70 °C (-13 °F to 158 °F)
- Product Dimensions (H×W×D)
- 7.1 in × 4.4 in × 4.5 in (182 mm × 113 mm × 114 mm), loudspeaker / 7.7 in × 4.4 in × 5.3 in (196 mm × 113 mm × 135 mm), loudspeaker with bracket
- Shipping Weight
- 9.2 lb (4.2 kg), pair
PERFORMANCE
- Frequency Range (-10 dB)
- 83 – 19,000 Hz
- Coverage, Horizontal
- 145°
- Maximum SPL at 1 m
- 99 dB
- Nominal Impedance
- 16 Ω (transformer bypass)
- Power Handling, Continuous
- 16 W
- Power Handling, Peak
- 64 W
- Sensitivity (SPL/1 W at 1 m)
- 87 dB
- Transformer Taps, 100V
- 2, 4, 8, 16 W, bypass
- Transformer Taps, 70V
- 1 W, 2 W, 4 W, 8 W, 16 W, bypass
- Coverage, Vertical
- 140°
TRANSDUCERS
- Driver Protection
- Recommended high-pass protection 85 Hz with minimum 24-dB/octave filter
- Low-Frequency Transducer Quantity and Size
- 1 × 2.25 in (57 mm) woofer
PRODUCT CODES
- 841151-0310

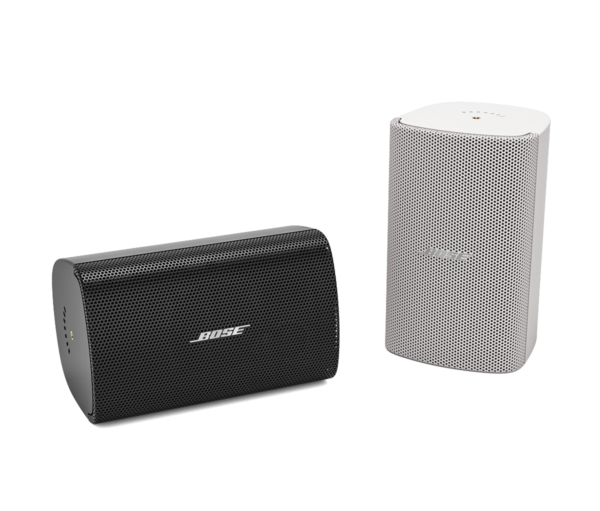

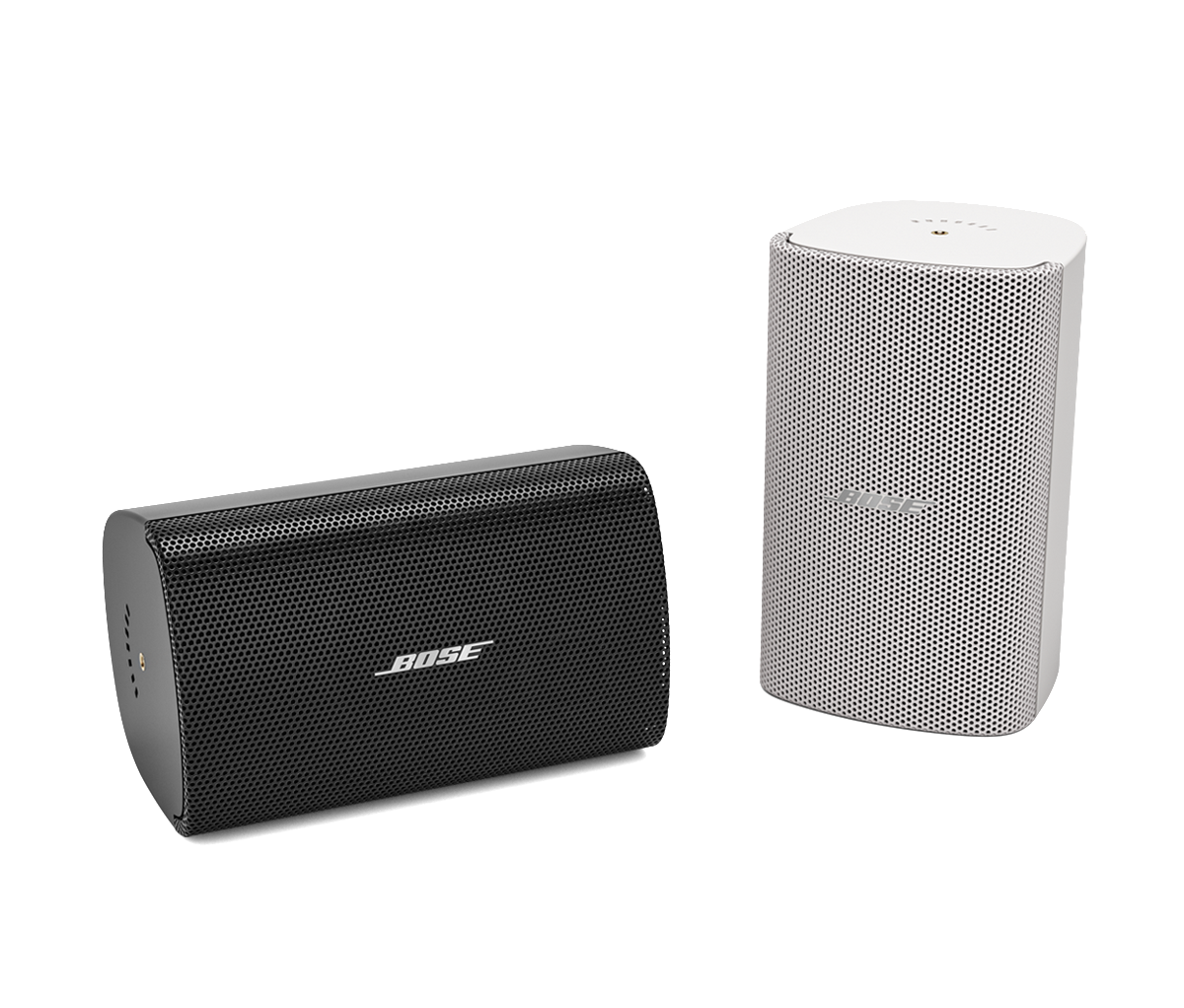

- FREESPACE FS2SE PAIR BLK
- 841151-0410
- FREESPACE FS2SE PAIR WHT
INCLUDED IN PACKAGING
- (2) logos
- (2) weather-resistant input covers
