MODEL

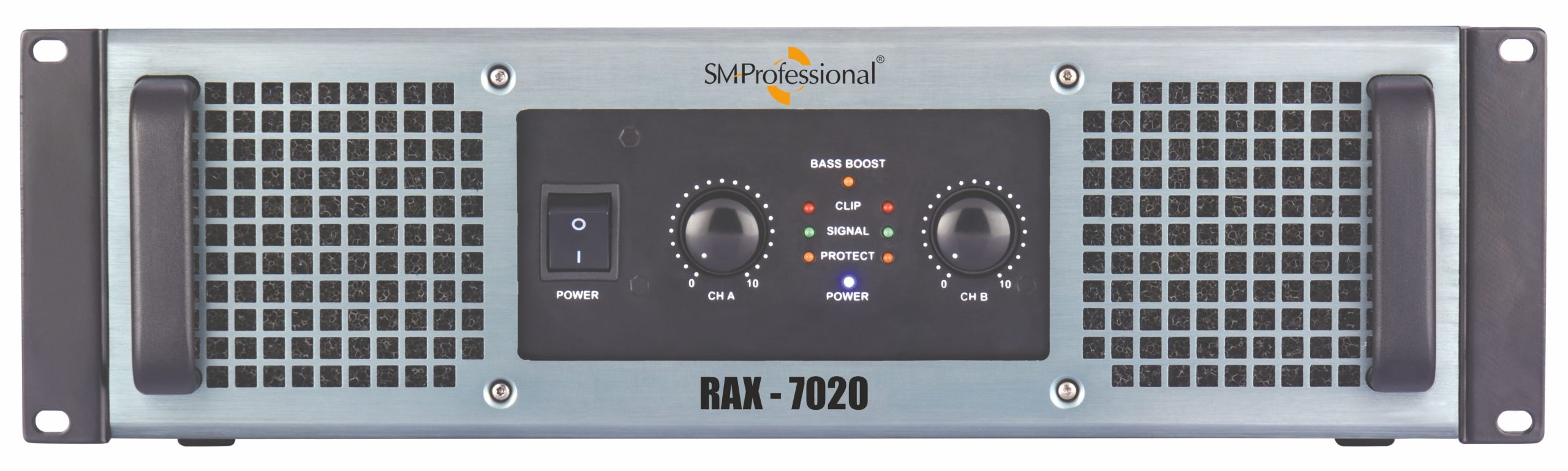

RAX 7020
POWER OUTPUT
2 Ω (True RMS),20Hz-20kHz,1% THD
2 x 3500 W
2 Ω (EIA), 1kHz , 1%THD
2 x 4500 W
4 Ω (True RMS),20Hz-20kHz,1% THD
2 x 2400 W
4 Ω (EIA), 1kHz , 1%THD
2 x 3100 W
8 Ω (True RMS),20Hz-20kHz,1% THD
2 x 1400 W
8 Ω (EIA), 1kHz , 1%THD
2 x 1800 W
BRIDGED MODE
4 Ω (True RMS),20Hz-20kHz,1% THD_
7000 W
8 Ω (T rue RMS),20Hz-20kHz,1% THD
4800 W
Damping factor (8 Ω)
> 350:1
Frequency Range
20Hz-20kHz (± 0.5dB)
Protection
Temperature, DC, Short Circuit, Soft-Start
Input Connector (Per Channel)
XLR, jack stereo 6.3mm
Output Connector (Per Channel)
Speakon and Binding Post
Dimensions (W x D x H) mm
482 x 527 x 133 (3U)
Net Weight (Kg)
34
